Project Description

Line Source / Commercial Stick

hd C5CX

  • Harmonic Design

  • 제조국 : Made in Germany

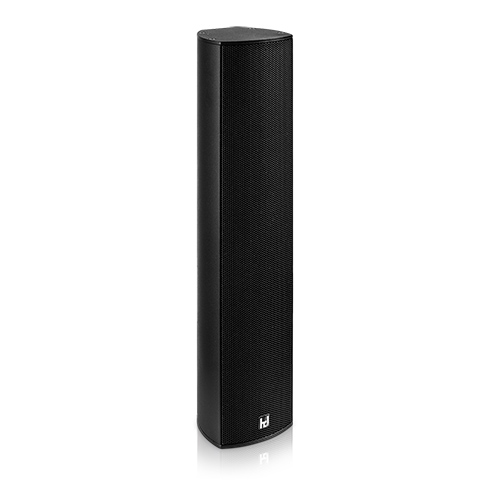

Commercial Stick hd C5CX

기능 및 특성

  • Operation with any amplifier
  • Integrated frequency and phase optimization
  • elegant design
  • precise and even sound emission
  • Coverage pattern 80° x 80°
  • excellent speech intelligibility
  • extended frequency response for background music
  • 100V version available

Technical Data

  • Acoustic design : Coaxial, D‘Appolito
  • Transducers : 2x 3“ woofers 1x 3,5“ + 1“ coaxial driver
  • Impedance : 8 Ω
  • Crossover : 4 kHz
  • Coverage (hor x ver) : 80° x 80°
  • Frequency range (-6dB) : 90 Hz – 22 kHz
  • Sensitivity (1W / 1m) : 91 dB
  • Power Rating AES / Peak : 190 / 265 W
  • SPLmax @ 10% THD : 115 dB
  • Enclosure : powder-coated aluminum profile black, steel grille with acoustic foam, connection terminal inside, cable inlet rear, incl. 2x M6 nuts
  • Weight : 4 kg
  • Dimensions (W x H x D) : 108 x 460 x 104 mm
