Project Description

Subwoofer

hd Sub18

  • Harmonic Design

  • 제조국 : Made in Germany

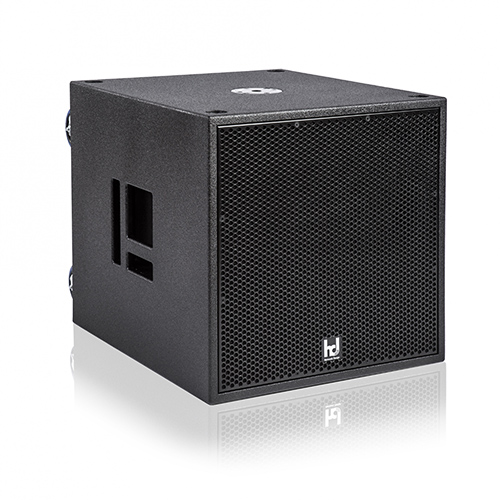

Subwoofer hd Sub18

기능 및 특성

  • 18“ neodymium-high performance woofer
  • very high maxSPL of 141dB
  • compact dimensions
  • robust enclosure with polyurethane coating
  • parallel operation with hd Sub18 possible
  • stand-alone or cardioid subwoofer array
  • extends the frequency range below 35 Hz
  • Installation version available

Technical Data

  • Acoustic design : Bass reflex
  • Transducers : 1x 18“N-long-excursion woofer
  • Impedance : 8 Ω
  • Crossover : variable according to the preset
  • Coverage (hor x ver) : omnidirectional, cardioid with preset
  • Frequency range (-6dB) : 35 Hz – 100 Hz
  • Sensitivity (1W / 1m) : 102 dB
  • Power Rating AES / Peak : 1800 / 7200 W
  • SPLmax @ 10% THD : 141 dB
  • Enclosure : robust multiplex housing with polyurethane coating black, recessed connection panel with 2x NL4, M20 thread, 2x transport handle, steel grille with acoustic foam inside
  • Weight : 40 kg
  • Dimensions (W x H x D) : 536 x 542 x 600 mm
